飛機改裝
Aircraft Modification
衛星電視
發表時間：2015-11-23
項目名稱 Project：B777系列飛機衛星電視系統改裝
TheInstallation of the Satellite TV System on B777 Series Aircraft
機型 Aircraft type：B777 series
工作內容：
系統線路連接設計
設備安裝結構設計和分析；
系統部件安裝設計；
改裝包器材設計和制造；
適航取證測試，包括系統功能測試、電磁干擾測試及飛行測試。
General:

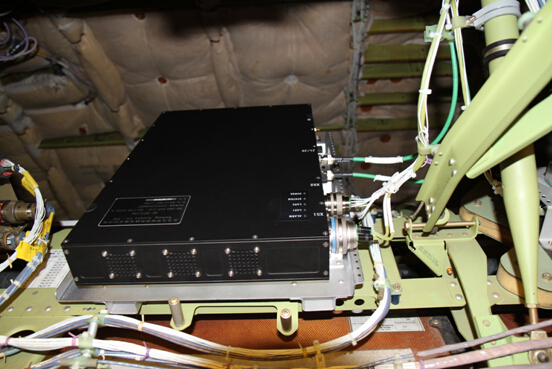

Equipment installation design,
System wiring design,
Equipment installation structure design and analysis,
System parts installation design,
Kit parts design and fabrication,
Certification plan and test.

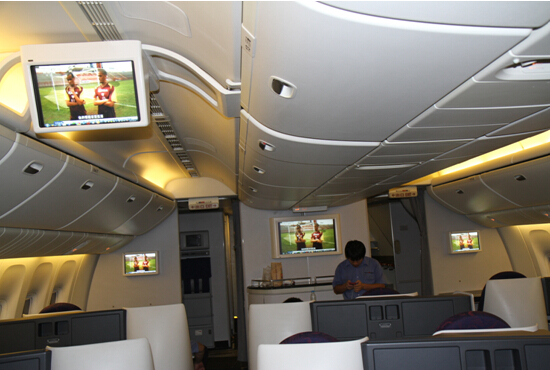

民航衛星電視系統是利用同步軌道衛星轉發器建立飛機與地面站之間的傳輸通道，并且由衛星地面站提供衛星網絡與地面網絡的數據交換，可以提供衛星電視直播業務以及推送式數據廣播服務。中國廣電部、中國民航局和中國國際航空股份有限公司對此項目予以了極大的關注和支持。
Based on the data exchange betweensatellite network and ground network through satellite ground station, China civilaviation satellite TV system takes use of synchronous orbit satellite transponderto establish transmission channel to provide in-flight TV program and data pushservice. CAAC and Air Chinagive their great interests and supports to this project.
2015年6月成都富凱啟動了國航波音B777-200型飛機上衛星電視系統的改裝方案設計工作以及衛星電視接收設備取證工作。項目要求要保證該系統能夠在9月3日的紀念中國人民抗日戰爭暨世界反法西斯戰爭勝利70周年閱兵這一具有重大意義的活動時進行電視節目直播。成都富凱克服了時間緊，任務重的困難，原計劃在8月底進行的改裝施工提前到了8月18日。改裝施工完成之后，飛機進行了地面功能測試及電磁干擾測試。最終的測試結果顯示衛星電視系統功能正常，并且沒有對飛機上的系統造成干擾。隨后，成都富凱獲得了局方頒發的衛星電視系統在B777系列飛機上改裝的重要改裝設計批準書。
Chengdu Flacon kicked off this project inJune 2015. To watch the TV program live of Commemorating the 70 anniversary ofthe victory of Chinese people's Anti-Japanese war and the world anti-fascistwar in flight, Chengdu Falcon overcome the tightened schedule and heavyworkload to pull in the modification to August 18. And the function test and EMItest showed this modification has no impact to the aircraft. As a result,Chengdu Falcon successfully gained MDA issued by CAAC.
此項目的及時完成，再次展現了成都富凱高效專業的改裝設計和適航取證能力，標志著富凱負責設計的機上客艙WiFI娛樂系統涵蓋了地空寬帶通信系統和衛星數據通信系統兩大主流方式，也結束了中國民航客機上無法收看電視直播節目的歷史，同時也進一步確立了國航在國內民航業中機上網絡系統的開發建設領域的領先地位。
The timely accomplishment of this projectpresents Chengdu Falcon’s high-efficiency and professional capability ofmodification deisgn and certification. It indicates Chengdu Falcon designedcabin Wifi system covering two main ways of both ATG and satellitecommunication. It also concludes the history of no in-flight TV program of China civilaviation. And it further strengthens Air China’sleading position in the airborne network development of China civil aviationas well.
